Description

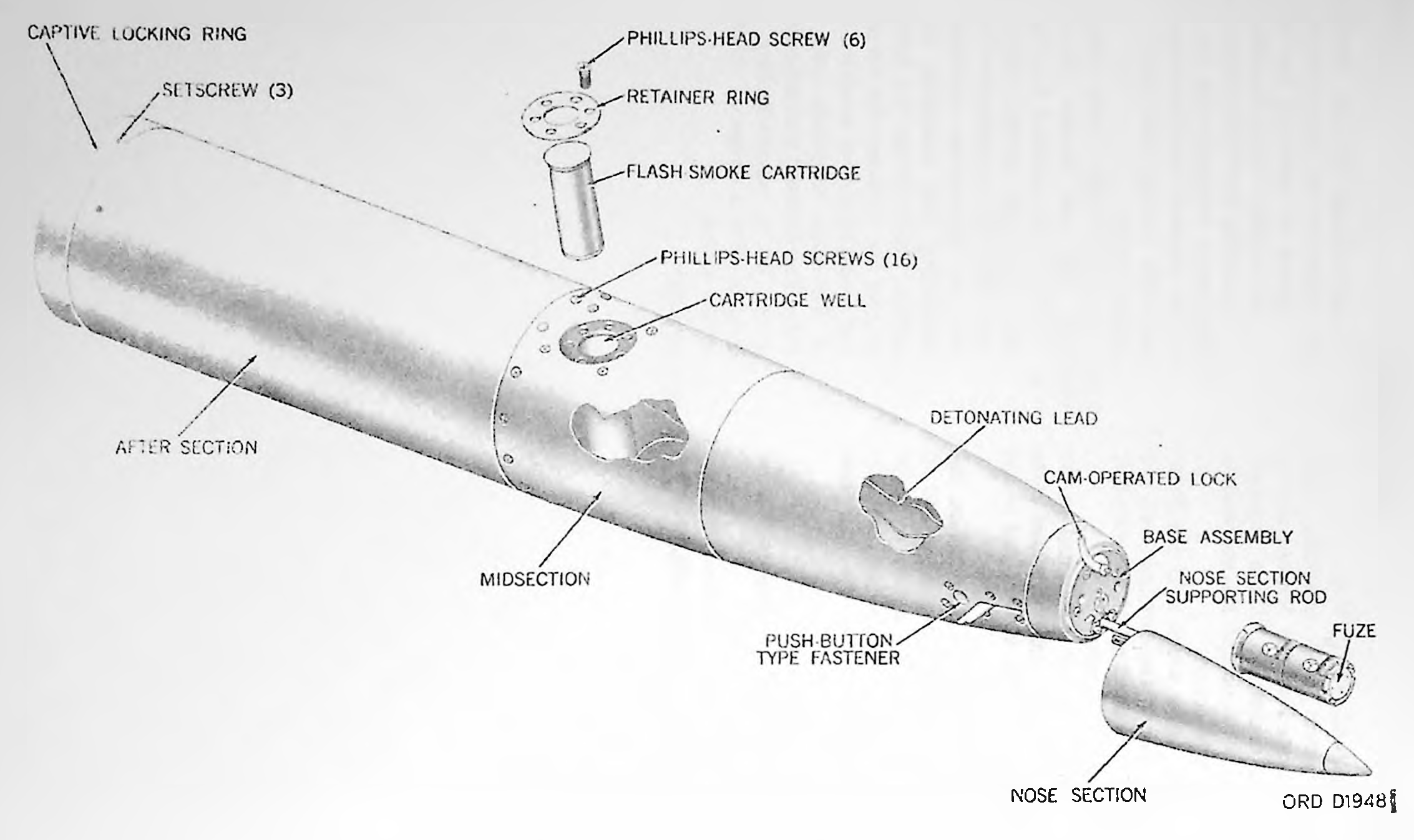

The warhead consists of a nose section which covers the fuze T2075E1, a midsection which houses the two flash-smoke cartridges and the detonating lead assembly, and an after section which carries the ballast required to give the warhead the necessary weight and center of gravity to match the ballistics of the other warheads used with Little John. The warhead is attached to the rocket motor by a captive-locking ring which threads onto a flange at the forward end of the motor.
Functioning
No information about functioning.
See Also
Rocket, 318mm Practice, XM51 Little John
Source(s)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
