Description

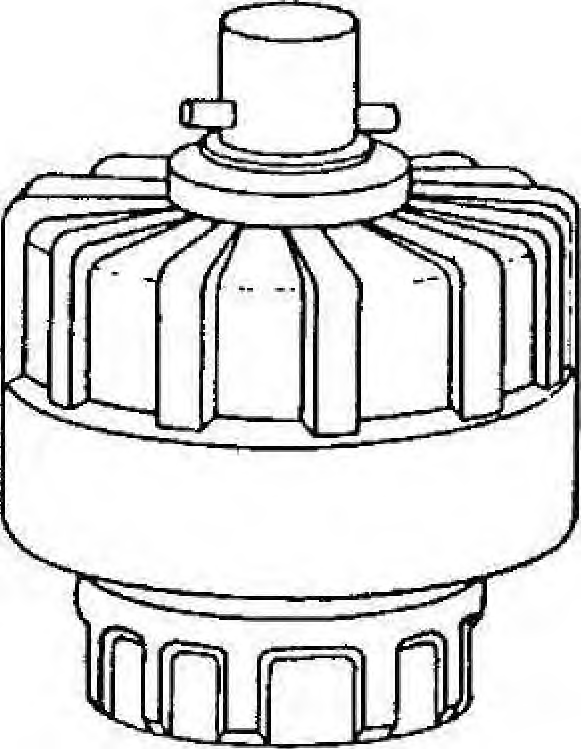

This device consists of a plunger, detonator retaining ring, vial of acid, and a chemical pellet enclosed in a bakelite case. The case is strengthened on the outside by the addition of vertical ribs; the lower portion is threaded to accommodate the detonator retaining ring. The plunger, held in place by a shear pin, rests on the vial. This fuze has no metallic parts.
This fuze is used with the Model 1947, Model 1951, Model 1951 probe-proof, and Model 1951 undetectable shaped charge antitank mines.
Functioning
No information about functioning.
See Also
Source(s)
TM 5-280, Foreign Mine Warfare Equipment (chg 1, 1971)
