Description

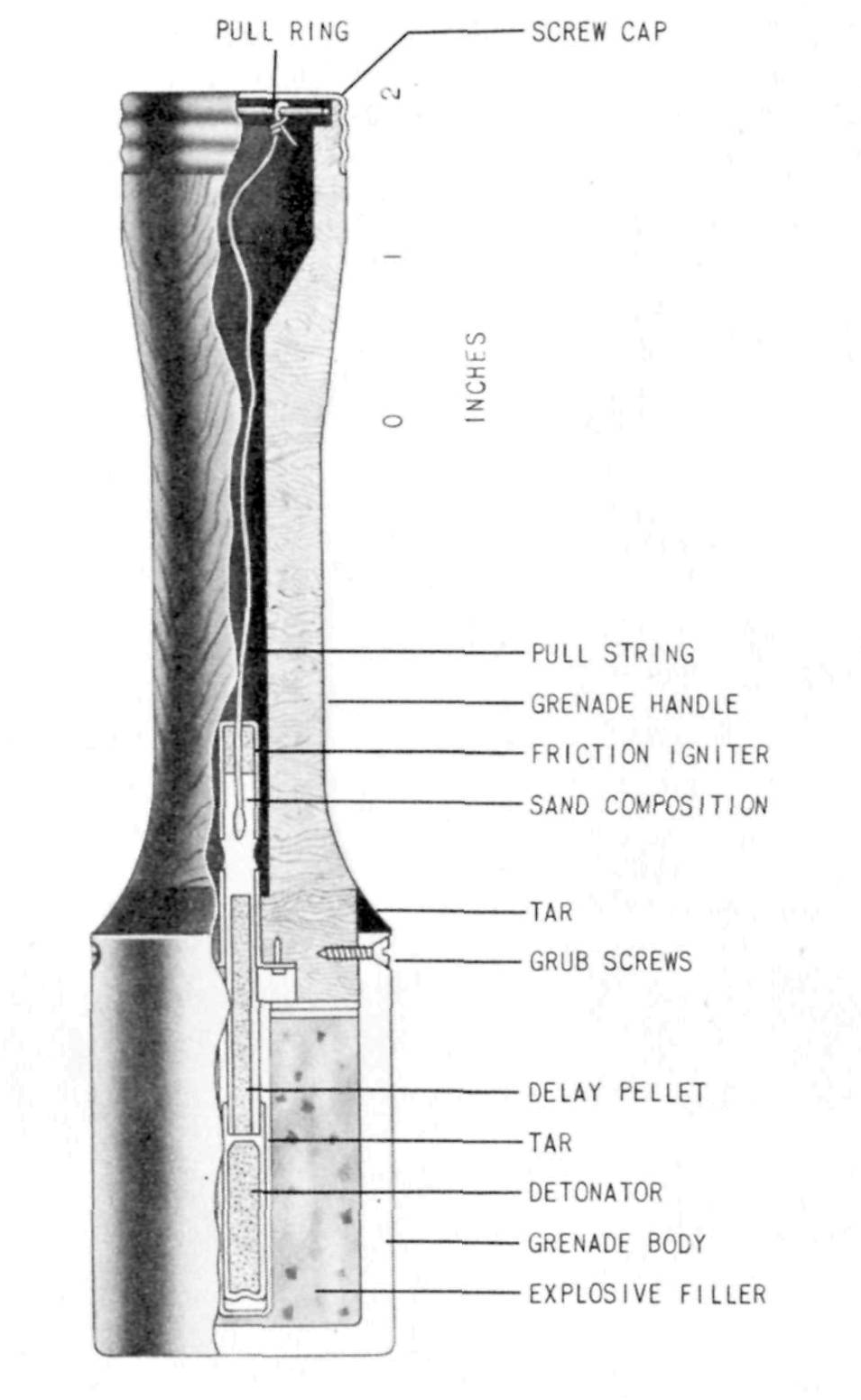

The body is cylindrical in shape and is made of cast steel 1/4 inch thick. The handle is turned from soft wood and slips into the steel body where it is held by three screws. This joint is sealed with a coating of tar. The screw cap at the pull end of the handle is of light, tin-plated steel.
The fuze consists of a friction ignition composition with a sanded string running through it. This string extends up the hollow handle and is connected to a pull ring which is exposed by removing the screw cap at the top of the handle.
Functioning
The screw cap is removed from the top of the handle. The ring inside the handle is then pulled. This draws the sanded string through the ignition composition igniting the 4 or 5 second delay. The delay train detonates a cap which detonates the main charge.
This grenade has more fragmentation effect than the German high explosive stick grenade.
Hazardous Components
Filler - Cast picric acid, 3 oz (84 grams)
Physical Data
Diameter - 1.31 in (33 mm)
Length - 7.75 in (197 mm)
Weight - 19 oz (504 grams)
See Also
Nothing else to see.
Source(s)
OP 1667, Japanese Explosive Ordnance, Volume 1 (1946)
CINCPAC-CINCPOA Bulletin 55-45, Japanese Infantry Weapons (1945)
