Description
This cartridge is designed for training in gunnery and fire control with 152mm gun launchers.

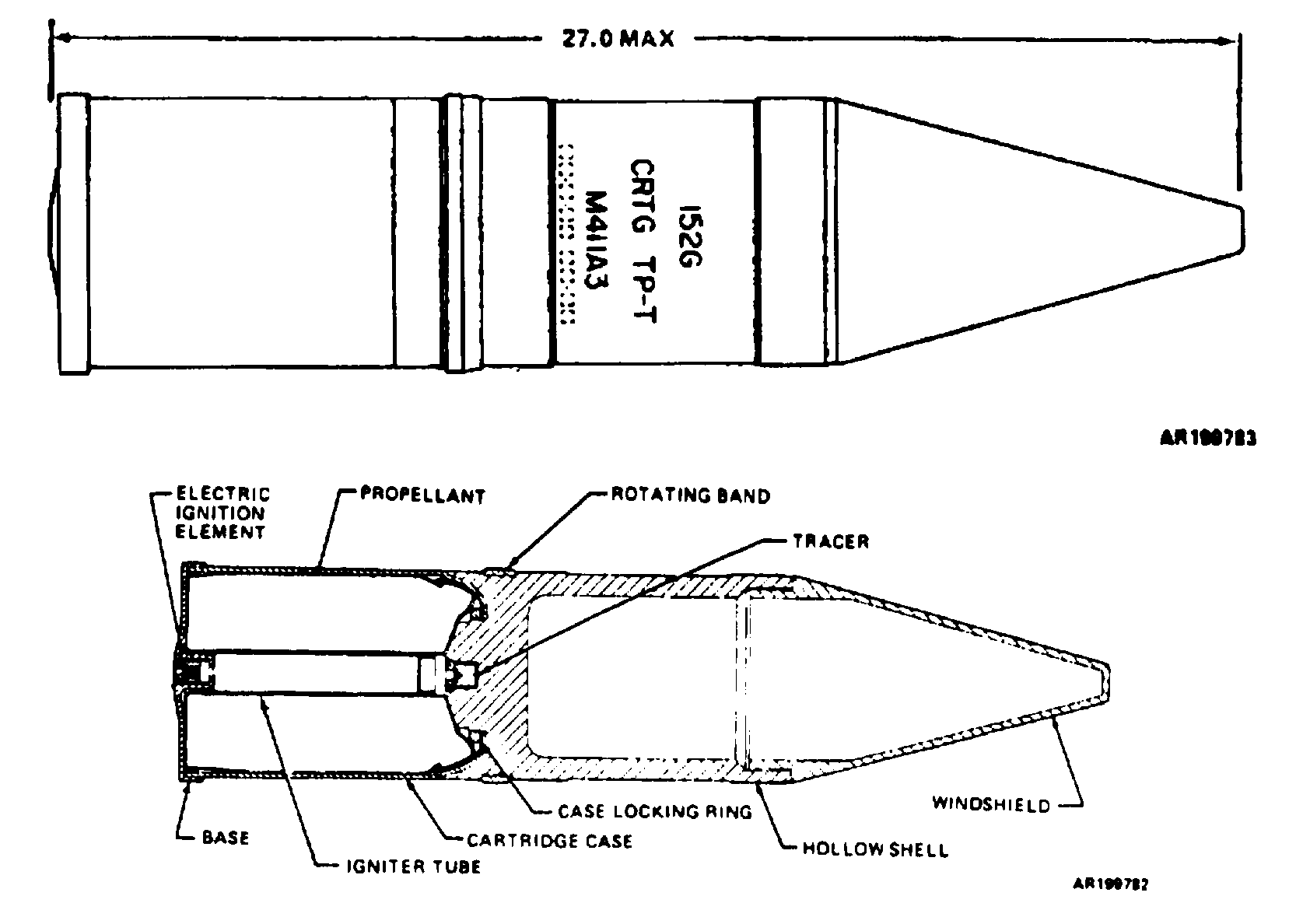

Cartridges of the M411 series consist of a hollow projectile secured to a cartridge case of combustible material, and simulate for practice purposes the 152mm, HEAT-T-MP, M409 series. Model M411A3 (XM411E7) is inert except for a tracer in the base of the projectile for observation of the trajectory. The M205 cartridge case is filled with bagged propellant and is equipped with an electrical ignition element, Model M411A2 is identical with M411A3 except for use of the older M157 cartridge case and M91 electrical primer. M411A1 has a multipiece projectile including steel body, aluminum spike, and steel windshield.
The projectile is blue with white markings and yellow band.
Functioning
Electric current from the firing mechanism initiates the ignition element/primer and the resulting flash ignites the propellant. The burning propellant generates gases which force the projectile from the gun tube and concurrently ignite the tracer. Except for the tracer, which marks the flight of the projectile, Cartridges M411A3, M411A2, and M411A1 are non functioning.
Hazardous Components
Cartridge case - M157 or M205
Propelling charge - M189
Primer - M91 (None for M411A3)
Tracer - M13
Physical Data
Length, overall (M411A1) - 26.9 in, 683.3 mm
Length, overall (M411A2) - 27.1 in, 688.3 mm
Length, overall (M411A3) - 27 in, 685.8 mm
See Also
Cartridge, 152mm HEAT-T-MP, M409, M409A1, M409A2
