Description

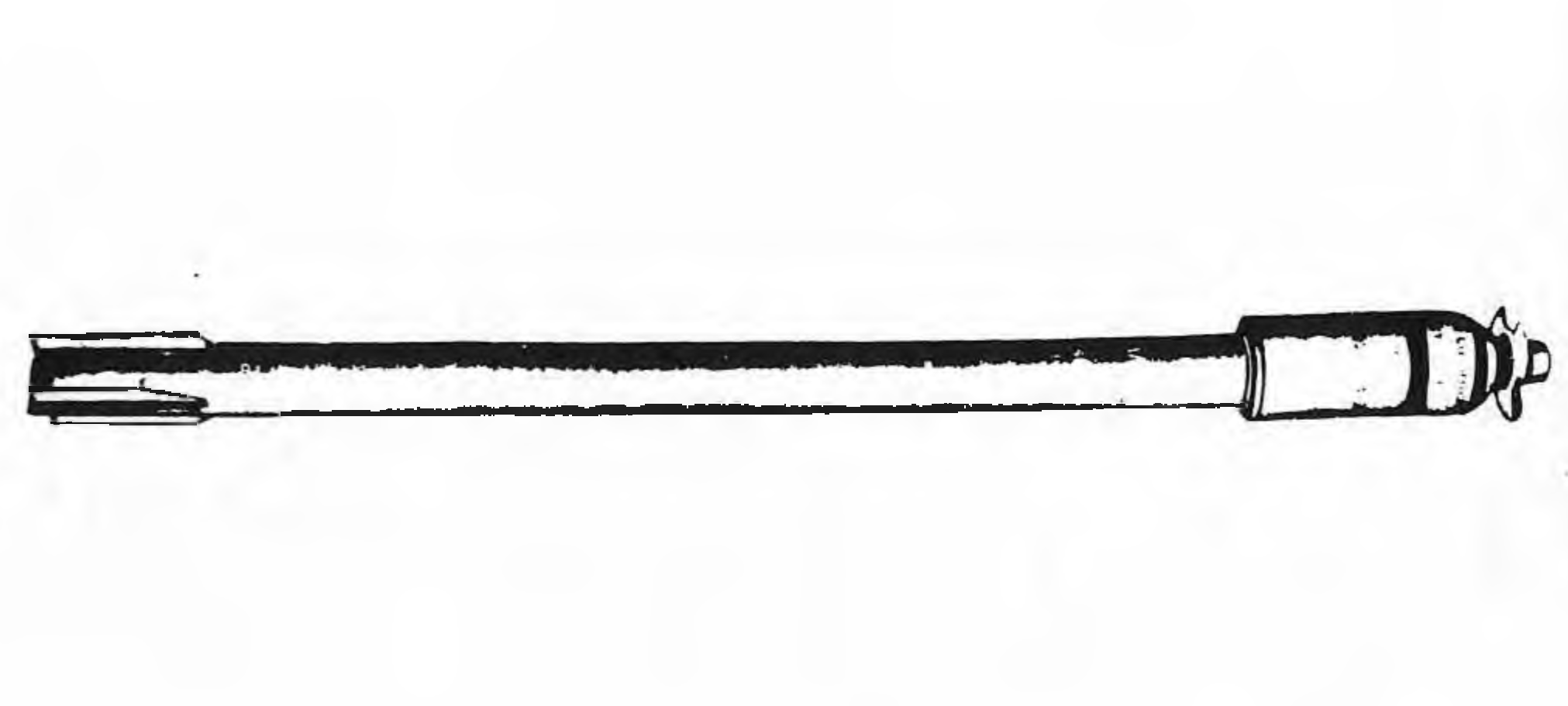

The Land Mattress rocket is designed as a barrage rocket for land service use. The motor employed is an adaptation of a 3-in. aircraft rocket motor, the modification consisting of cutting down the tail fins. Loss of stabilization due to the reduced tail surfaces is regained by imparting a spin to the rocket with spiral rails in the barrel of the launcher.
A novel method of varying range is incorporated in this rocket. Two spoiler plates, which consist of metal discs with three equispaced, cut-out segments, are placed face to face and are fitted to a spoiler bush. The spoiler bush is a collar which fits over the top of the Fuze No. 721 and is recessed so as not to foul the protruding ends of the fuze shear wire.
Functioning
No information about functioning.
See Also
Source(s)
OP 1665, British Explosive Ordnance (1946)
