Description

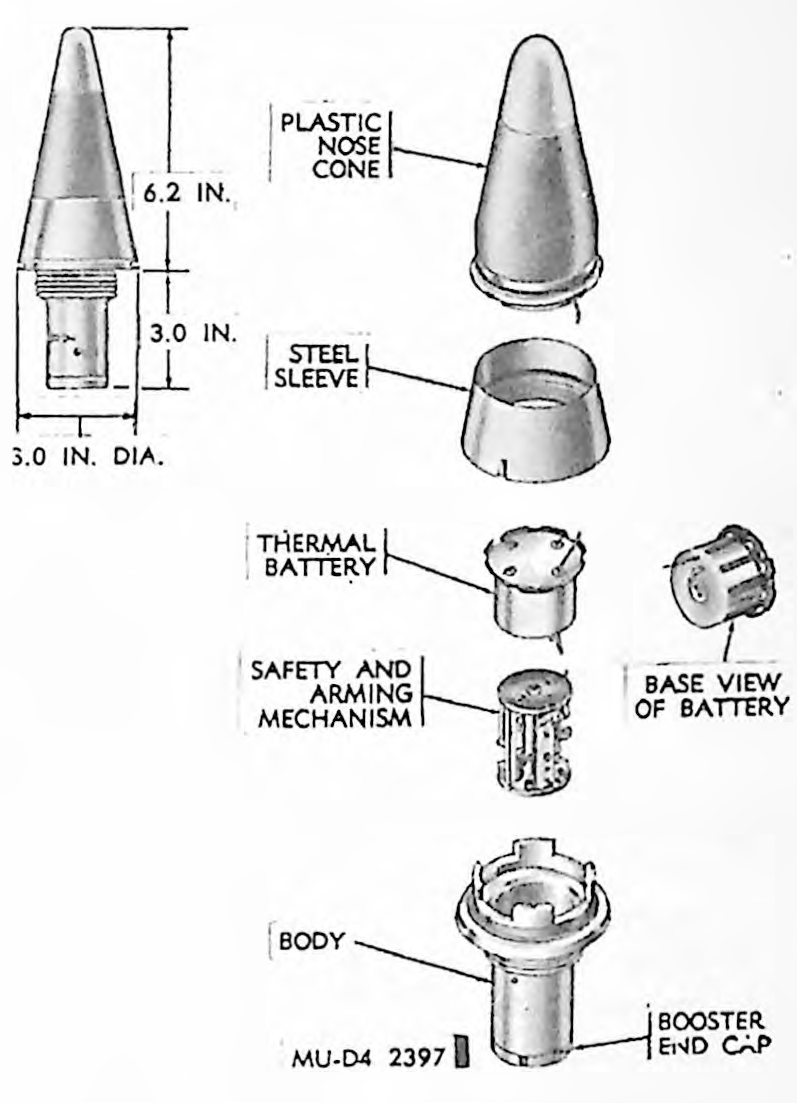

The M414 is a proximity fuze backed up by a self destruct element which is a mechanically operated cocked striker device. The fuze contains a safety and arming device which is activated by setback force, and governed by a delay train. The visible parts are a two piece plastic nose cone, a steel sleeve and the fuze body seating surface, which has two wrench slots.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
