Description
This item contains 1.4 kg (3.1 lb) VX filler. It uses a VT fuze, model unknown; possible alternate use of the V-90 or the D-1-U, and has a TNT burster charge.

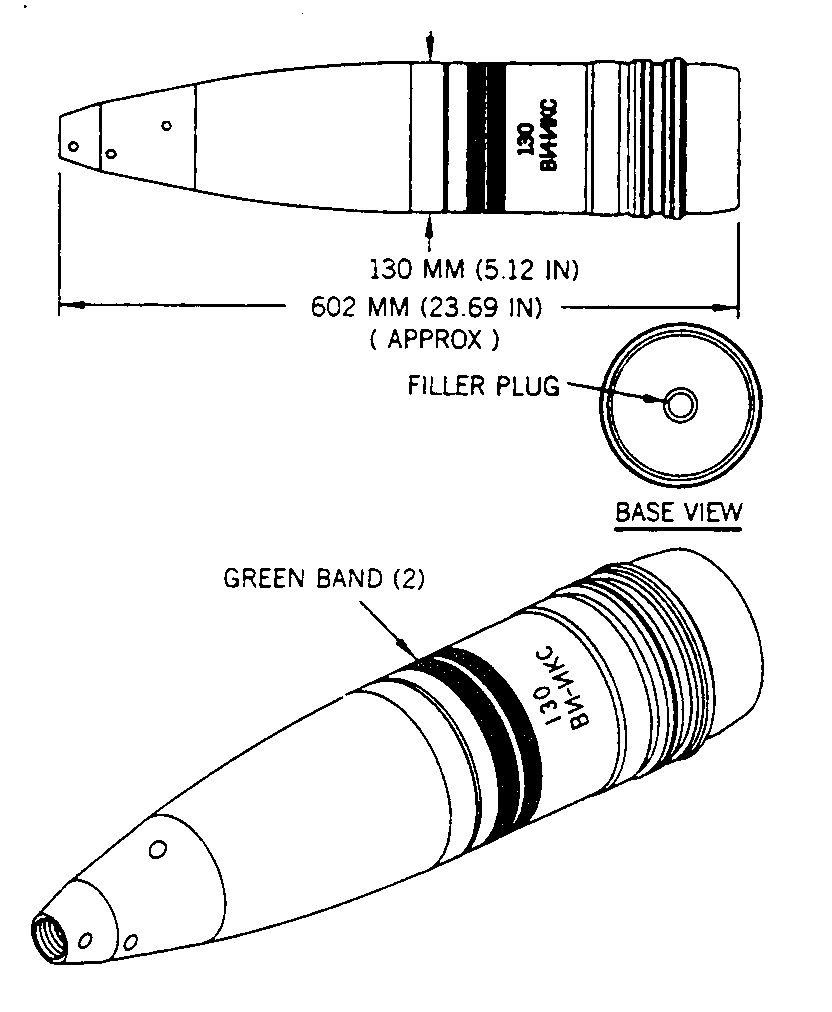

This projectile externally resembles the DTS-1 130mm targer marker smoke projectile with the exception of the adapter which is of two piece construction. The two piece adapter allows the use of a standard fuze as well as a larger diameter fuze.
The item is gray with green markings.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Projectile, 130mm Smoke WP, DTS-1
