Description

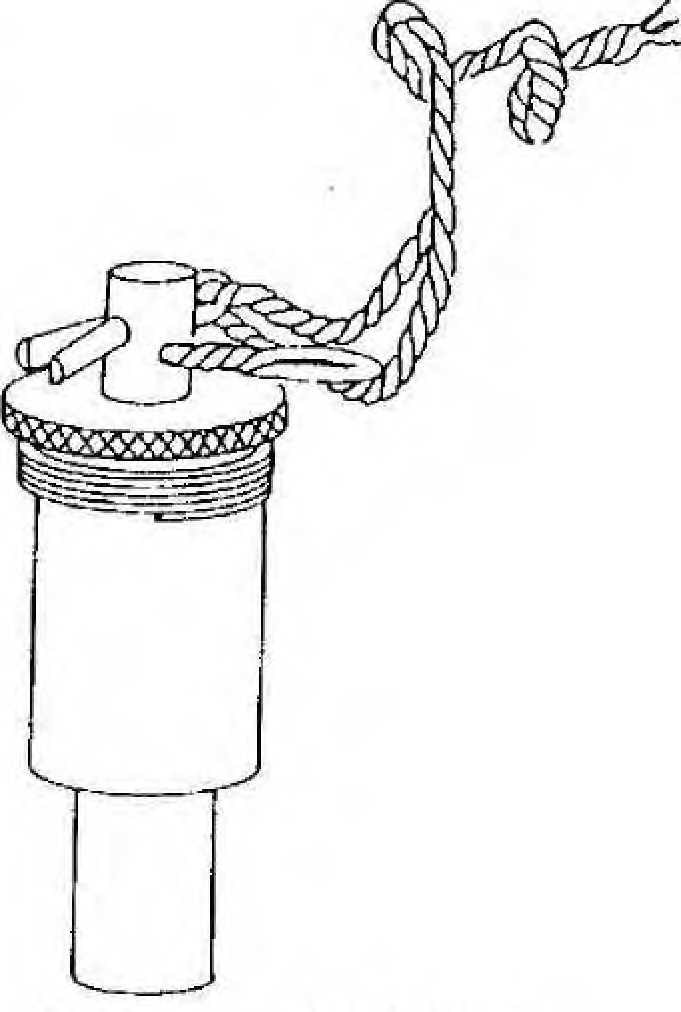

This is a mechanical model with a striker retained by a shear pin. The actuation force may be varied by the use of different sized shear pins. The standard one fails under a force of about 165 lb. The brass case has an outer shell screwed together. The inner shell contains the striker spring and is threaded at the lower end to receive the detonator.
This fuze is used with the 9.9 lb antitank mine.
Functioning
No information about functioning.
See Also
Nothing else to see.
Source(s)
TM 5-280, Foreign Mine Warfare Equipment (chg 1, 1971)
