Description

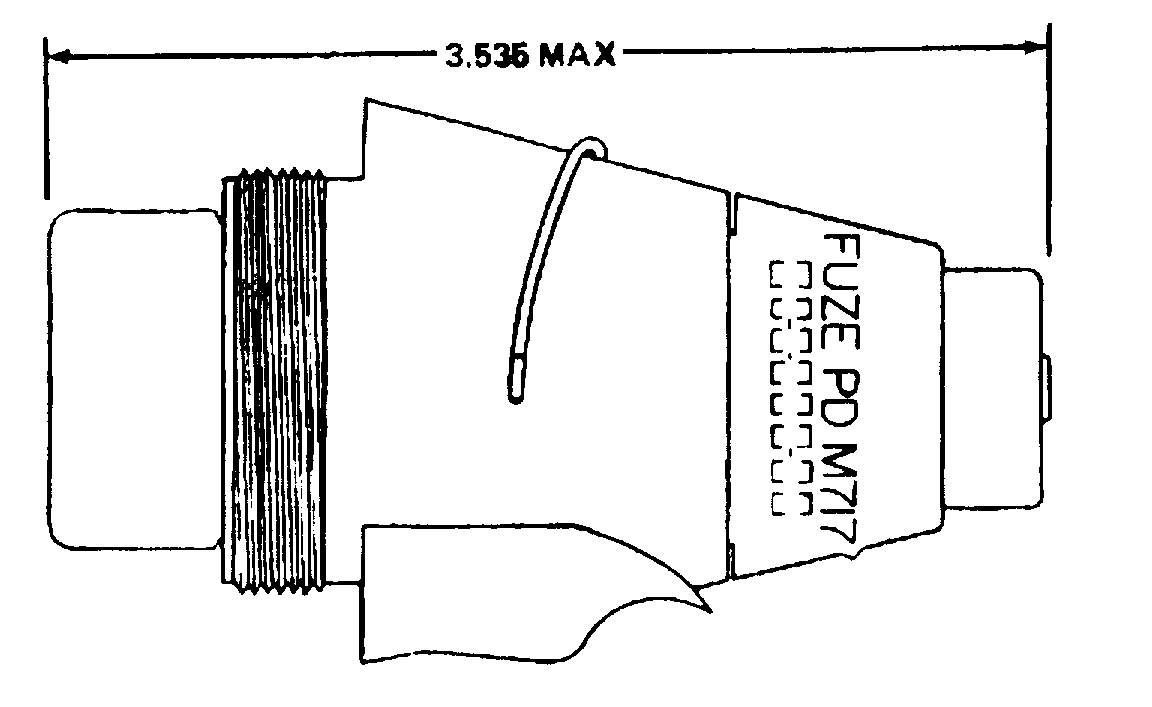

Point Detonating Fuze M717 is a superquick, delayed arming impact fuze used with 60mm mortar HE cartridges.
The aluminum fuze head contains a spring loaded striker and firing pin. A spring loaded cylindrical slider, mounted transversely in the aluminum fuze body, contains the detonator and is equipped with an O-ring pressure seal. Inbore safety is provided by a spring loaded bore riding pin which locks the slider. A pull wire restrains the setback pin (not shown in illustration) which locks the bore riding pin. Tape and a plastic disk protect the metering orifice. The fuze base contains a tetryl booster lead charge. A cup containing a tetryl booster pellet is threaded to the base.
