Description

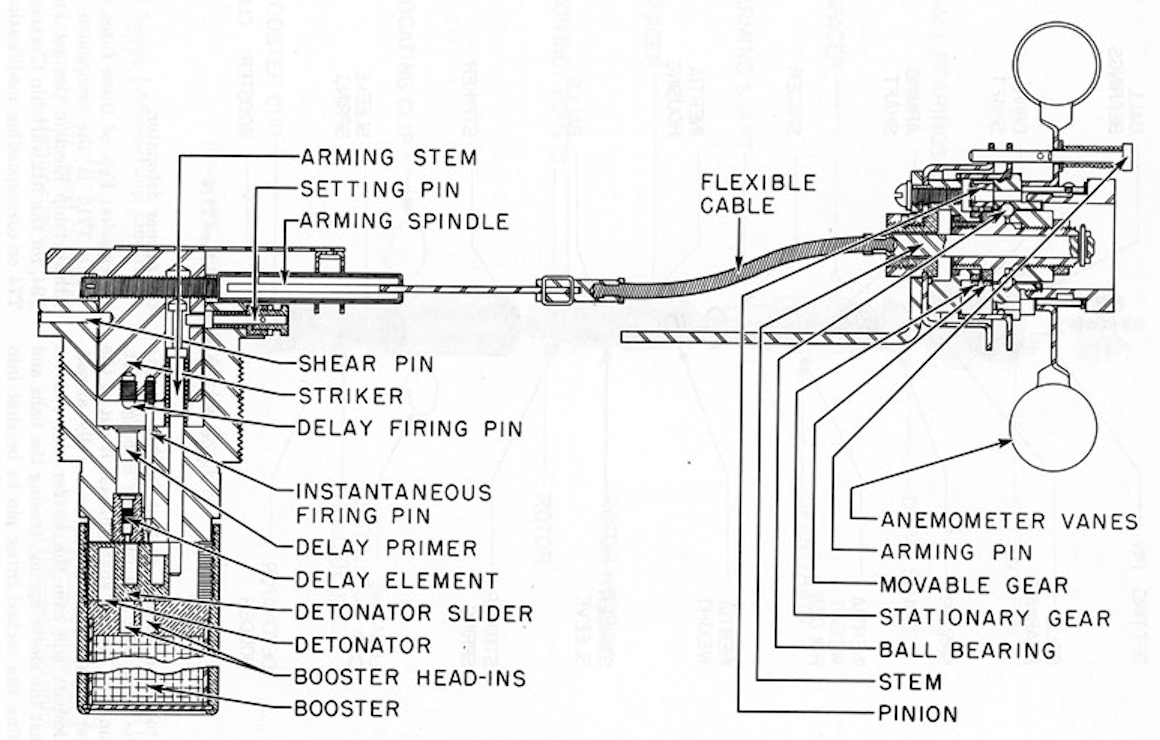

This is an elbow shaped fuze for use in guided missiles. At present it is used only in the nose of "Felix" VB-6. It is essentially a Nose Mechanical Impact Fuze AN-M103 connected to the remote windmill arming vanes by a flexible cable. The vane and gear assembly is the same as that used on the Tail Mechanical Impact Fuze M167. The fuze proper is like the AN-M103, except that it does not have the vane cap, safety discs, or arming screw.
Functioning
No information about functioning.
See Also
Guided Missile, Air to Surface, VB-6 Felix
Source(s)
OP 1664, Volume 2 - US Explosive Ordnance (1947)
