Description

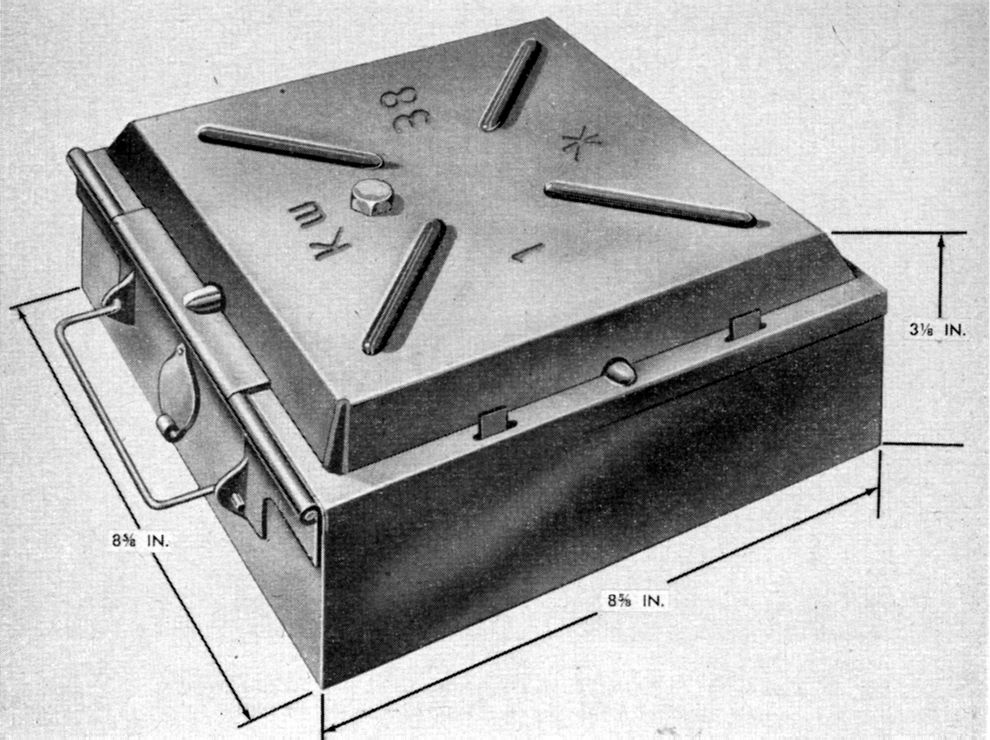

The TM-38 is a later model of the TM-35, and looks much like it. It is 21.8 by 21.8 by 7.8 centimeters. The pressure lid has four raised ridges to add rigidity and does not have a shield plate. A pressure bolt extends through the pressure lid and mine cover and is positioned just above the fuze actuating lever.
This mine is employed in minefields and roads for antitank and anti transport purposes. Occasionally the Germans found this mine laid on a supplementary charge containing an MUV pull fuze with a cord running from the retaining pin to the handle of the mine.
As these mines are easily boobytrapped, it is recommended that they be destroyed in place by counter charging them on the top close to the fuze.
Functioning
Pressure on the steel pressure lid forces the pressure bolt down on the fuze actuating lever, pulling out the retaining pin. This forces the spring-driven striker to fire the percussion cap and detonate the mine.
Hazardous Components
Filler - TNT, 6.5 lb (2.95 kg)
Physical Data
Length - 8.58 in. (218 mm)
Width - 8.58 in. (218 mm)
Height - 3.1 in. (78 mm)
See Also
Source(s)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
TM 5-280, Foreign Mine Warfare Equipment (1963)
TM 5-223A, Soviet Mine Warfare Equipment (1951)
