Description

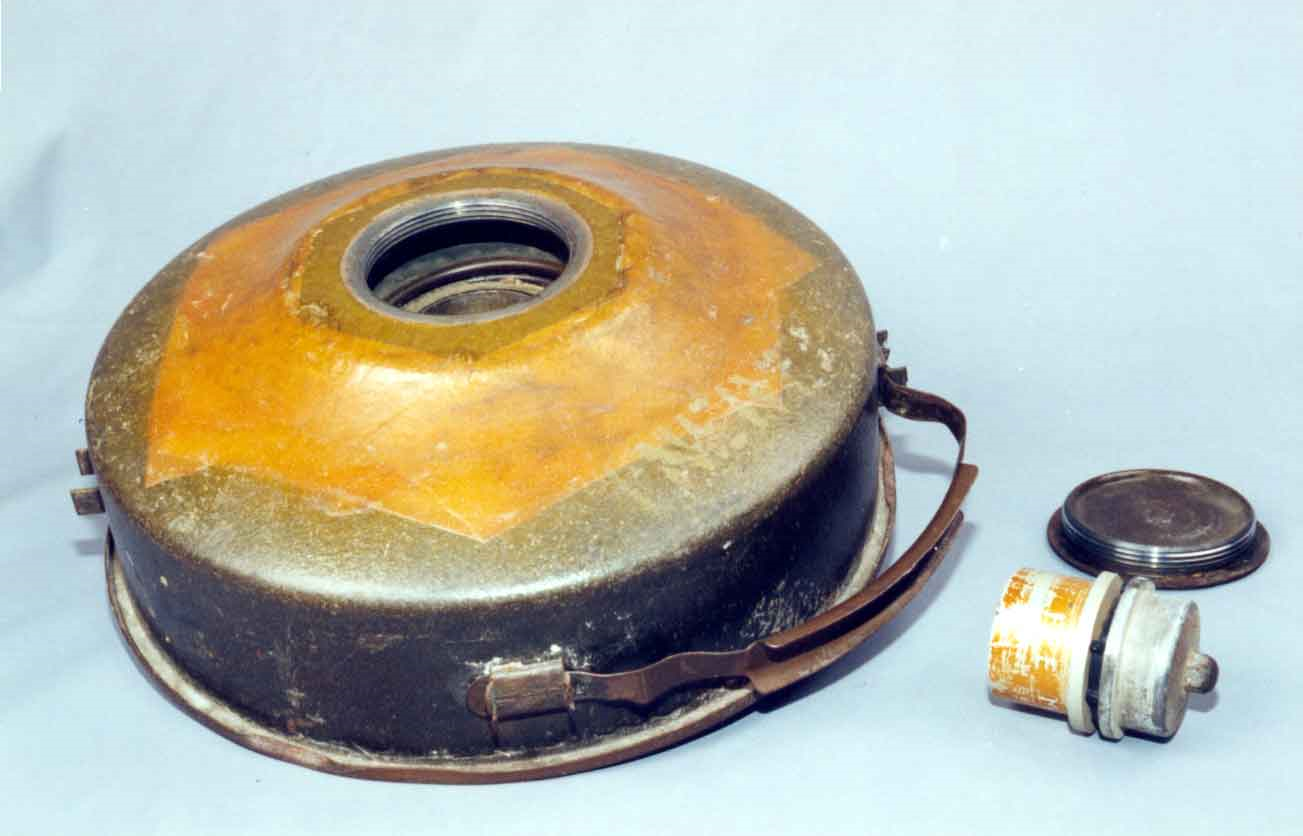

The Mk-7 antitank mine consists of a circular metal housing with a handle attached to the side. The mine body contains the explosive charge and a single or double impulse pressure fuze. The top portion of the mine is slightly domed, rising toward the center where the fuze well is located. The Mk-7 is a heavy antitank mine containing 8.89 kg of TNT, sufficient for use as a full-width attack antitank mine. Although not often encountered, there is a tiltrod fuze designed for use in this mine.
The mine is OD green or sand color.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
TM 5-280, Foreign Mine Warfare Equipment (chg 1, 1971)
