Description

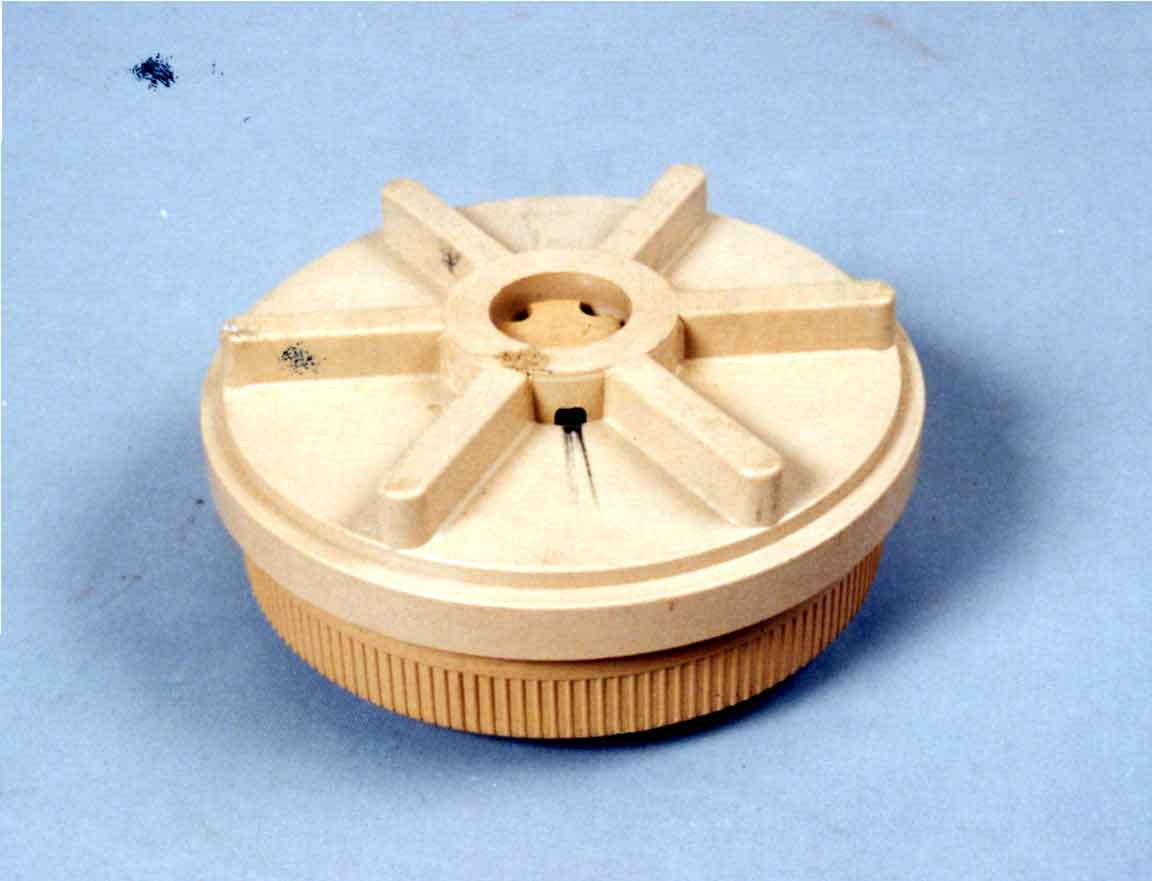

The PRB M409 is a plastic bodied, circular antipersonnel mine. During transport, the pressure membrane of the mine is protected by a safety plate with raised ridges. The fuze is a double percussion type with two opposing steel firing pins. The strikers are held apart by a sliding bolt attached to the pressure plate. The bolt has an aperture holding two percussion caps. When the bolt is displaced, the strikers are released and detonate the percussion caps. The only metal components are firing pins and two aluminum primer caps. A copy of the PRB M409 is also produced in Portugal as the M 411.
The mine has one fuze well and no power source.
The mine is green and sand brown in color. The mine is cylindrical and 28 mm high.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
