Description

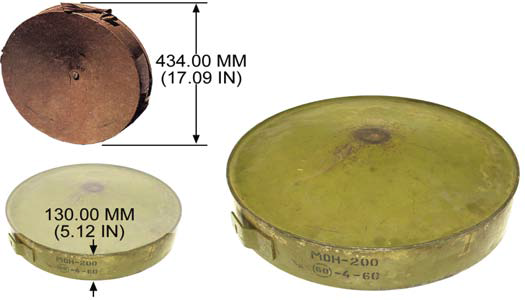

The former Soviet MON-200 is a larger version of the MON-100 mine. It consists of a metallic case containing the explosive charge and 900 steel fragments (12mm X 12mm) and a metal stand. Like the MON-100, the cylindrical steel fragments are embedded in a plastic matrix in front of the explosive. The mine can be attached to any fixed object or mounted on its own metal stand. The MON-200 can be functioned by tripwire, a break-wire or command detonated and has a lethal range of 200 meters. The MON-200 can be used singly or as part of an integrated explosive barrier. The mine is not only effective against dismounted infantry but also against personnel in lightly armored vehicles.
The mine is OD green.
Functioning
No information about functioning.
Hazardous Components
Main charge - TNT, 26.4 lbs (12 kg)
See Also
Source(s)
Explosive Ordnance Guide for Ukraine, First Edition (2022)
Explosive Ordnance Guide for Ukraine, Second Edition (2022)
Afghanistan Ordnance ID Guide, Volume 1 (2004)
Iraq Ordnance Identification Guide (2004)
