Description
The TA Practice Smoke Hand Grenade, M83 is a burning type grenade used to generate white smoke for screening activities of small units. It is also used for ground-to-air signaling.

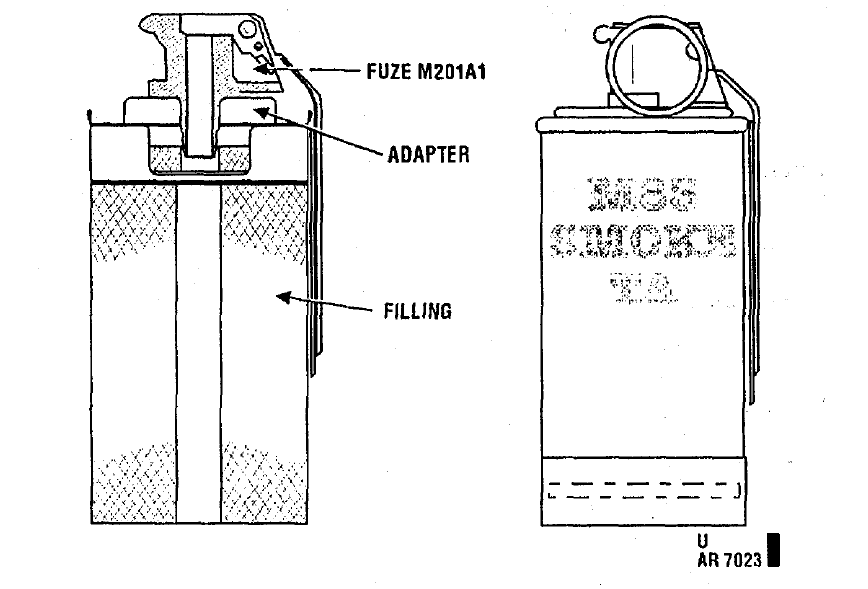

The grenade body is a cylinder of thin sheet metal. It is filled with TA smoke mixture topped with a starter slug directly under the fuze opening. The duration of smoke screen or signal is 25 to 70 seconds, average burn-time.
Hand grenade fuze M201A1 is a pyrotechnic delay igniting fuze. The body contains a primer, first-fire mixture, pyrotechnic delay column, and starter slug. Assembled to the body are a striker, striker spring, safety lever and safety pin with pull ring. The split end of the safety pin has an angular spread.
Safety clips are not required with these grenades.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
TM 43-0001-29, Grenades (chg 4, 2002)
