British Cluster Projectile, 400 lb, No. 3 Mk 1

Scroll Prev Top Next More

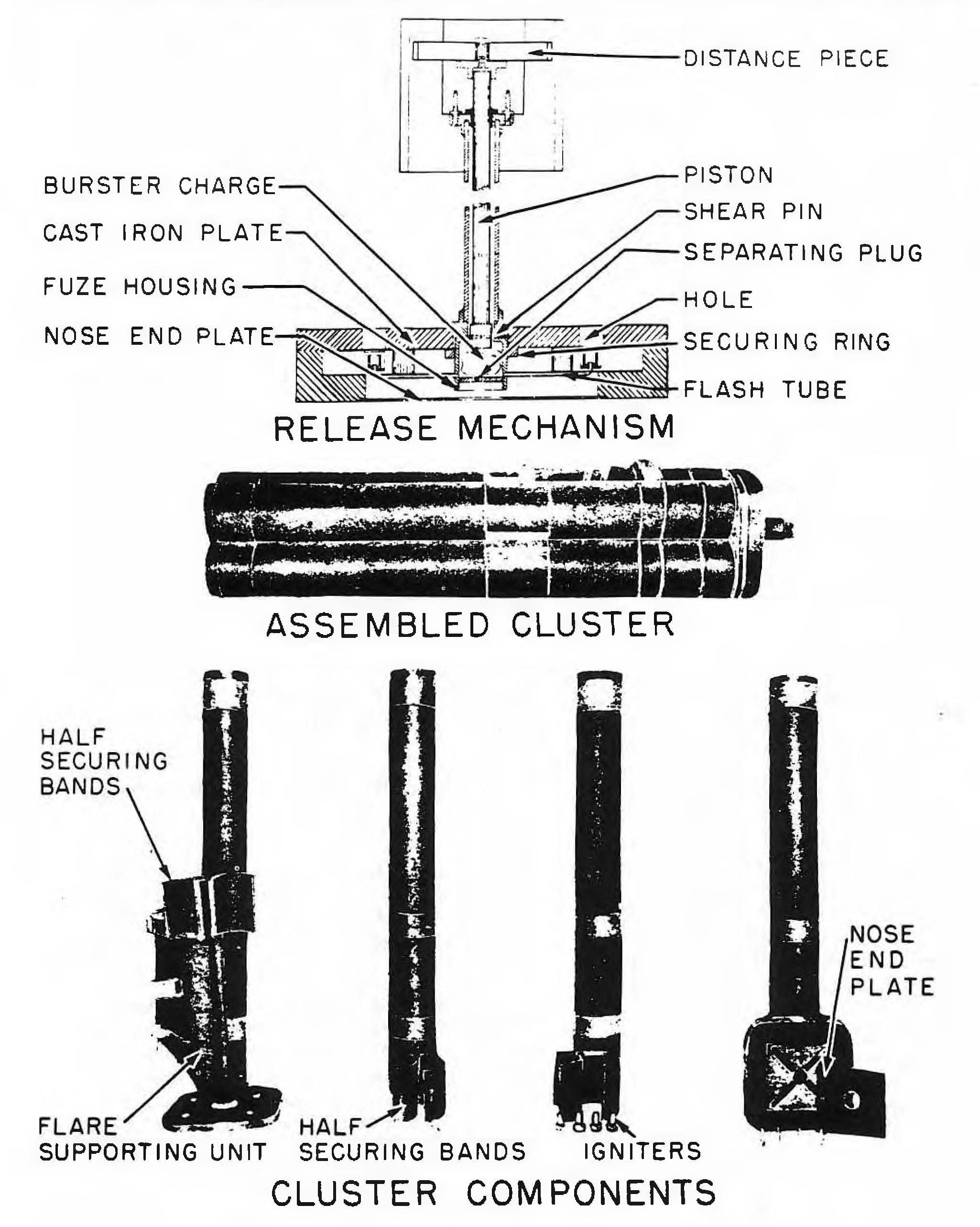

1394-185

Description

The cluster projectile consists of a flare supporting unit, heavy nose, half securing bands, and the hooded flares. The flare-supporting unit consists of a square cast-iron plate, on which is painted a narrow white alignment strip, and a steel tube to which is welded a suspension web. The rear end of the tube is flanged, and four equispaced pins are riveted to the flange. External threads on the fuze housing receive the plate-securing ring, which secures the plate to the tube. The tube is also internally threaded at the nose end to receive the fuze and a centrally drilled separating plug.

Four flash channels are drilled through the walls of the fuze housing immediately above the separating plug. Four flash tubes lead from these flash channels to the four equispaced holes in the plate drilled to receive the flare igniters. The piston, flanged at the protruding tail end, is housed in the tube and retained in position at the nose end by two shear pins. A space between the nose end of the piston and the centrally drilled separating plug forms a burster chamber, which is filled with a small fabric bag containing 80 grams of gunpowder when the cluster is fuzed. The heavy cast-iron nose, on which is painted a white alignment strip, and to which the flare supporting unit is bolted, is slotted to receive the flash tubes and the Fuze No. 860. The nose end plate is retained in position by the fuze. The four flares are fitted with special igniters instead of fuzes, and are retained in position in the cluster by half securing bands. The igniters are located in the drilled holes in the plate.

The four half securing bands of the flare securing unit are seated on the flange, and each is retained in position by a socket, welded to the outside of the band, engaging with a corresponding dowel pin. The sockets are covered by metal bridges in which are cut horizontal slots to receive the flange of the piston. This prevents premature displacement of the flares. The four remaining half securing bands are placed in position round the flares and bolted to the other half bands. A cruciform distance piece is bolted to the tail end of the piston.

Functioning

No information about functioning.

See Also

Nothing else to see.

Source(s)

OP 1665, British Explosive Ordnance (1946)
