Description

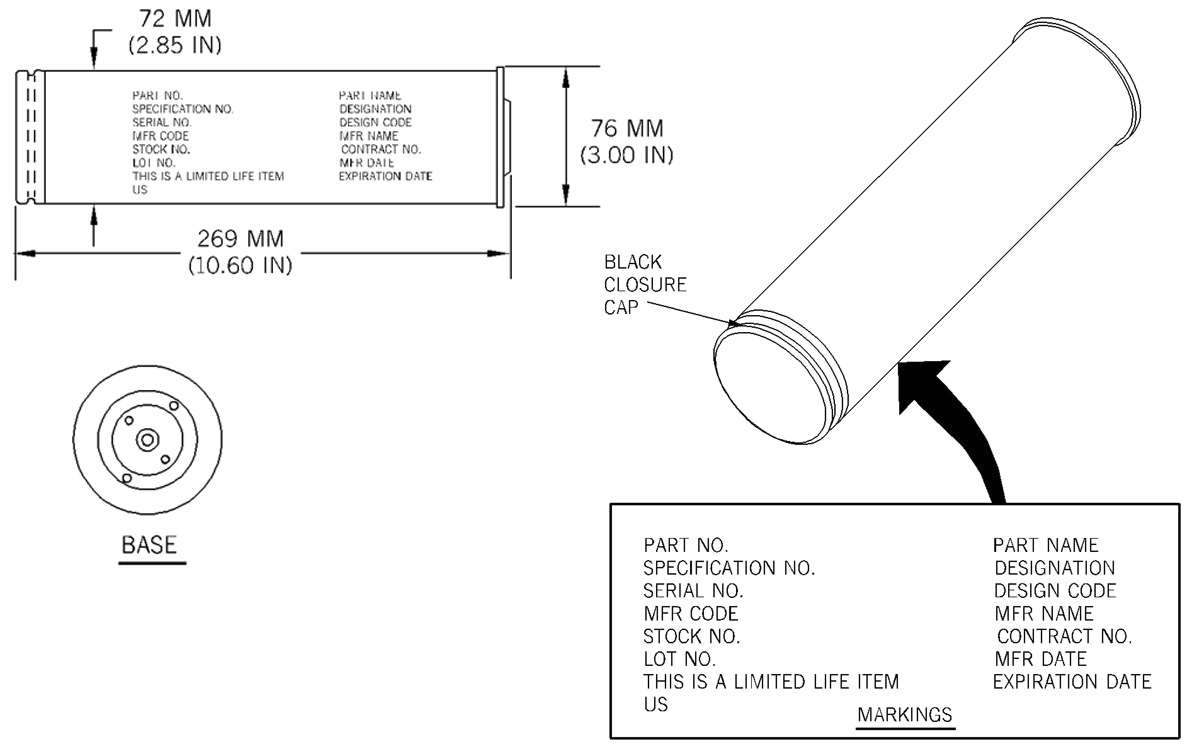

The figure shows the appearance and dimensions of the MJU-23/B flare cartridge. These are airborne pyrotechnic (infrared) countermeasures flare cartridges. The flares are used in the B-1B aircraft expendable countermeasures ejector system. The MJU-23/B flare cartridges are installed in flare dispensers, 12 cartridges per dispenser.
The flare cartridge is unpainted aluminum with markings stenciled in black.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
Iraq Ordnance Identification Guide (2004)
