Description
This fixed cartridge is designed for use in 76mm guns against armored targets.

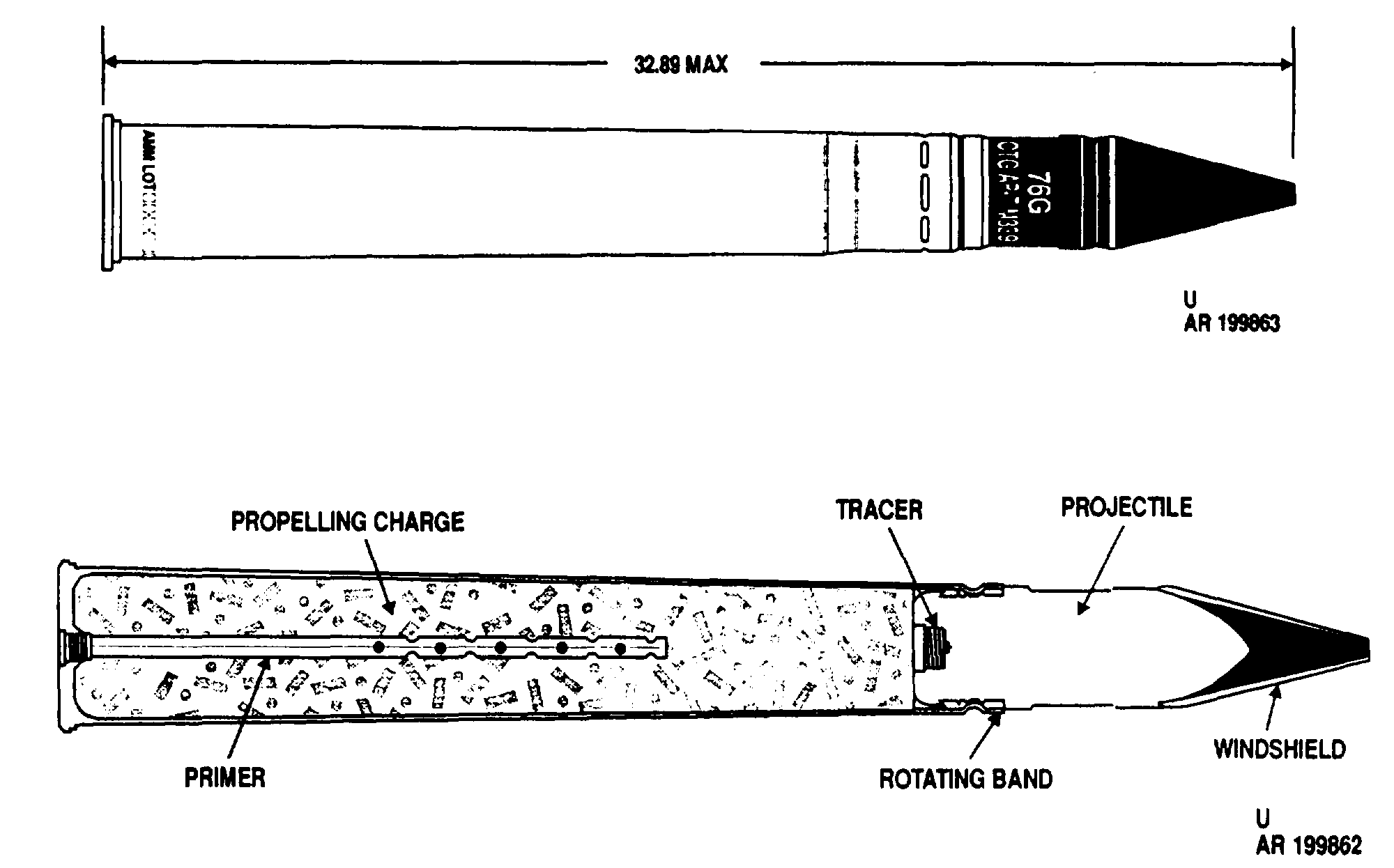

The solid tungsten carbide projectile is fitted with a lightweight windshield to provide a better ballistic shape. A tracer is located at the base of the projectile. The cartridge case, fitted with percussion primer and containing a triple base propellant, is crimped to the projectile. A distinguishing characteristic of these rounds is the case-over-band construction. The specially designed rotating band has a crimping groove which permits the cartridge case to be assembled over the rotating ban and rigidly crimped to it.
The projectile is black with white markings.
Functioning
When the weapon is fired, a flash from the primer ignites the propellant. Gases from the burning propellant ignite the tracer and force the projectile from the gun barrel. The tracer provides a luminous red trace. Upon impact, the windshield breaks up and the tungsten carbide shot penetrates the armored target.
Hazardous Components
Primer - M58
Tracer - M5 or M13
Propelling charge - M17 (5.69 lb, 2.56 kg) or M30 (5.6 lb, 2.52 kg)
Physical Data
Length, overall - 32.89 in, 835.4 mm
