Description
The canister is used in tank weapons to discourage personnel from approaching the tank.

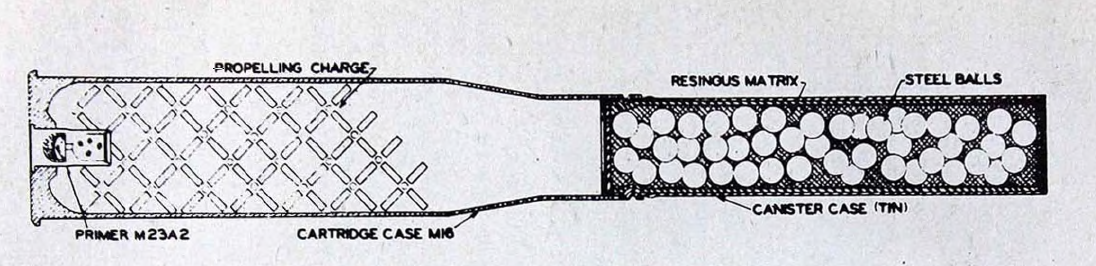

The canister case is made of ordinary roofing tin, or template. The filling consists of 122 steel balls, each approximately .375 inch in diameter, imbedded in a resinous material forming a matrix. A raised bead around the lower part of the case serves to seat it properly in the cartridge case.
Hazardous Components
M23A2, 20-grain, Percussion Primer, is “Standard.” Some rounds may be on hand, primed with M23A1.
Propelling charge - FNH powder (0.44 lb, 0.198 kg) is poured loosely into the cartridge case.
See Also
Nothing else to see.
Source(s)
TM 9-1904, Ammunition Inspection Guide (1944)
