Description

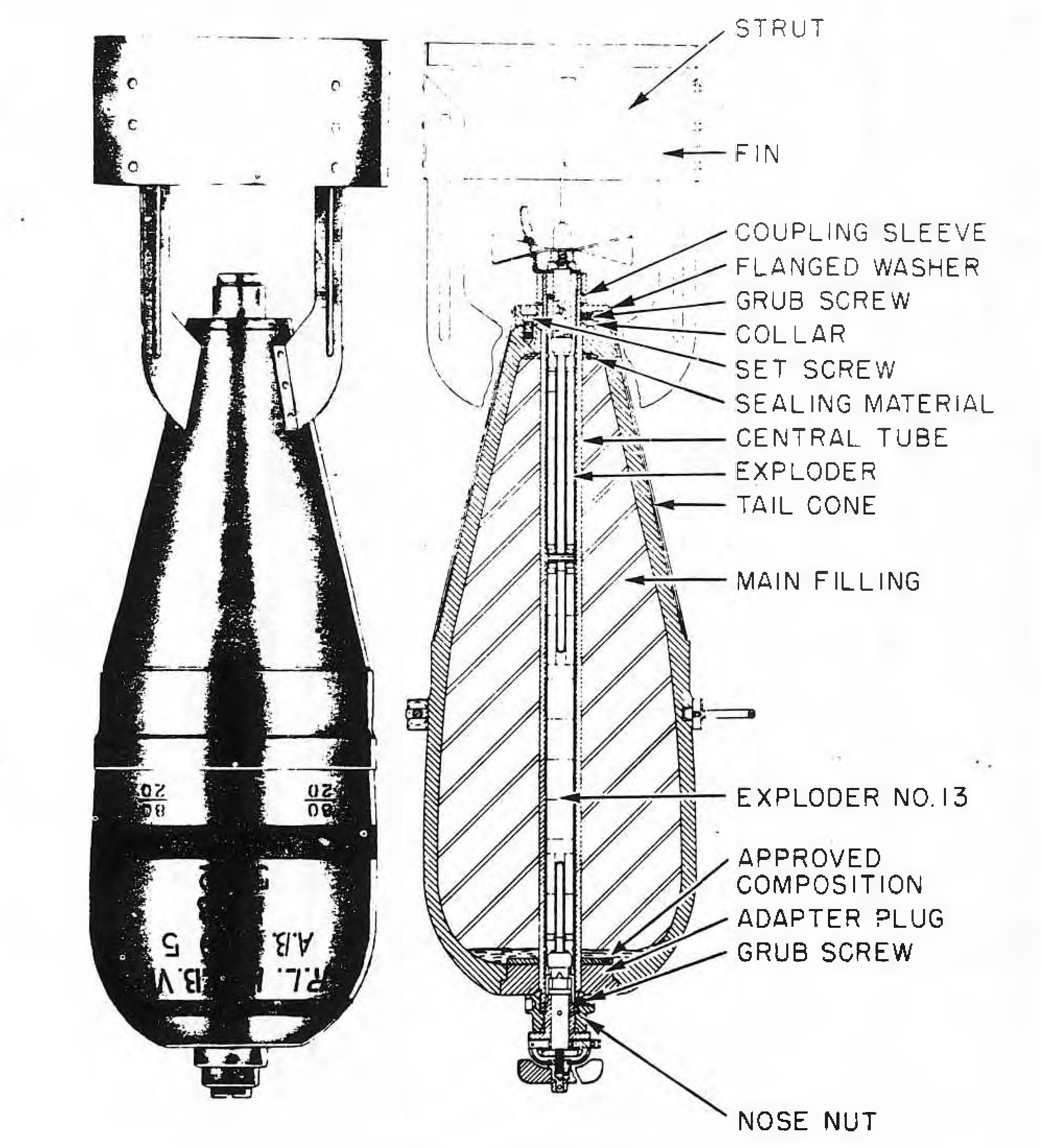

The body of these bombs is a single streamlined casting, steel for Mks V and VII and iron for Mk VI, threaded at the nose and tail to take adapters for the central exploder tube.
The tail of the Bomb Mk V consists of four tail fins, which fit over the body and are fastened in place with screws. Two sets of box-type struts reinforce the tail fins.
The tail assembly of the Bombs Mk VI and Mk VII consists of a tail cone, which slides over the after end of the bomb body and is secured by a locknut on the exploder tube. Four tail fins are riveted on the cone and are held in place by two sets of box-type struts.
The Bomb Mk V has a U-shaped eye-bolt secured to the body with screws at the center of gravity.
The Bombs Mk VI and Mk VII have a U-shaped eye-bolt fastened to a suspension band around the center of gravity.
Functioning
No information about functioning.
See Also
British Bombs - Designation and Classification
Source(s)
OP 1665, British Explosive Ordnance (1946)
