Description
Fuze M607 is used with antitank mine M21.

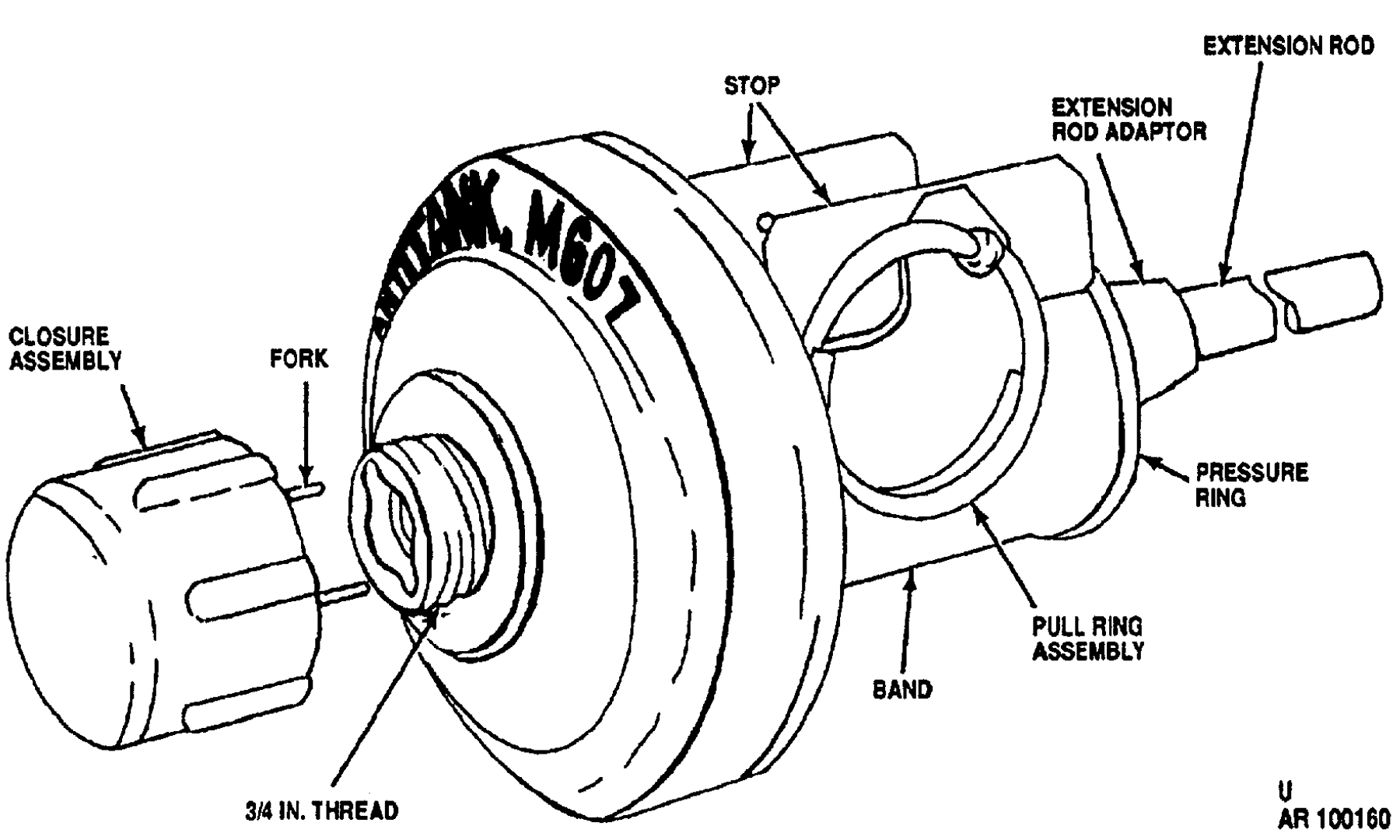

The M607 fuze incorporates a belleville spring loaded firing pin, a tilt rod, a pressure ring, and a frangible plastic collar. The base is threaded to fit the mine and is shipped with a closure assembly screwed in place for protection. Fuze wrench M26 fits the closure assembly. A safety band and strap prevents movement of the fuze pressure ring. This is secured with a cotter pin.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Source(s)
TM 43-0001-36, Land Mines (chg 3, 2000)
TM 9-1385-51, Ammunition (Conventional) for Explosive Ordnance Disposal (1967)
