Description
The M603 fuze is an instantaneous mechanical pressure-type fuze and is used with light antitank mine M7A2 and heavy antitank mine M15 and chemical agent mine M23.

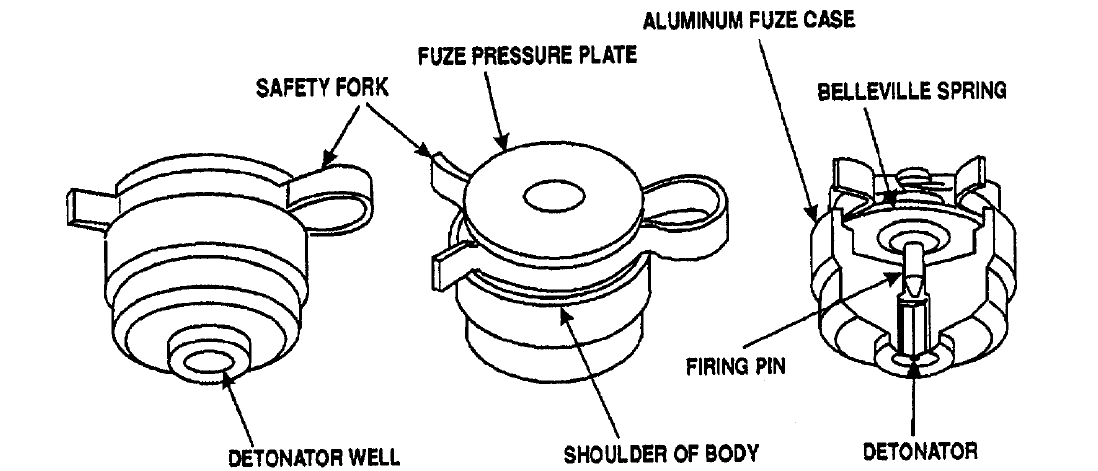

The M603 fuze body contains a firing pin assembly, a cover assembly, a safety fork (clip), and a detonator. The firing pin is actuated by a belleville spring.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Source(s)
TM 43-0001-36, Land Mines (chg 3, 2000)
