US Bomb, 150 lb Photoflash, M120, M120A1

Scroll Prev Top Next More



clip2149

Description

These are freefall, fin stabilized, photoflash bombs designed to airburst at advantageous heights to provide illumination for nighttime aerial photography.

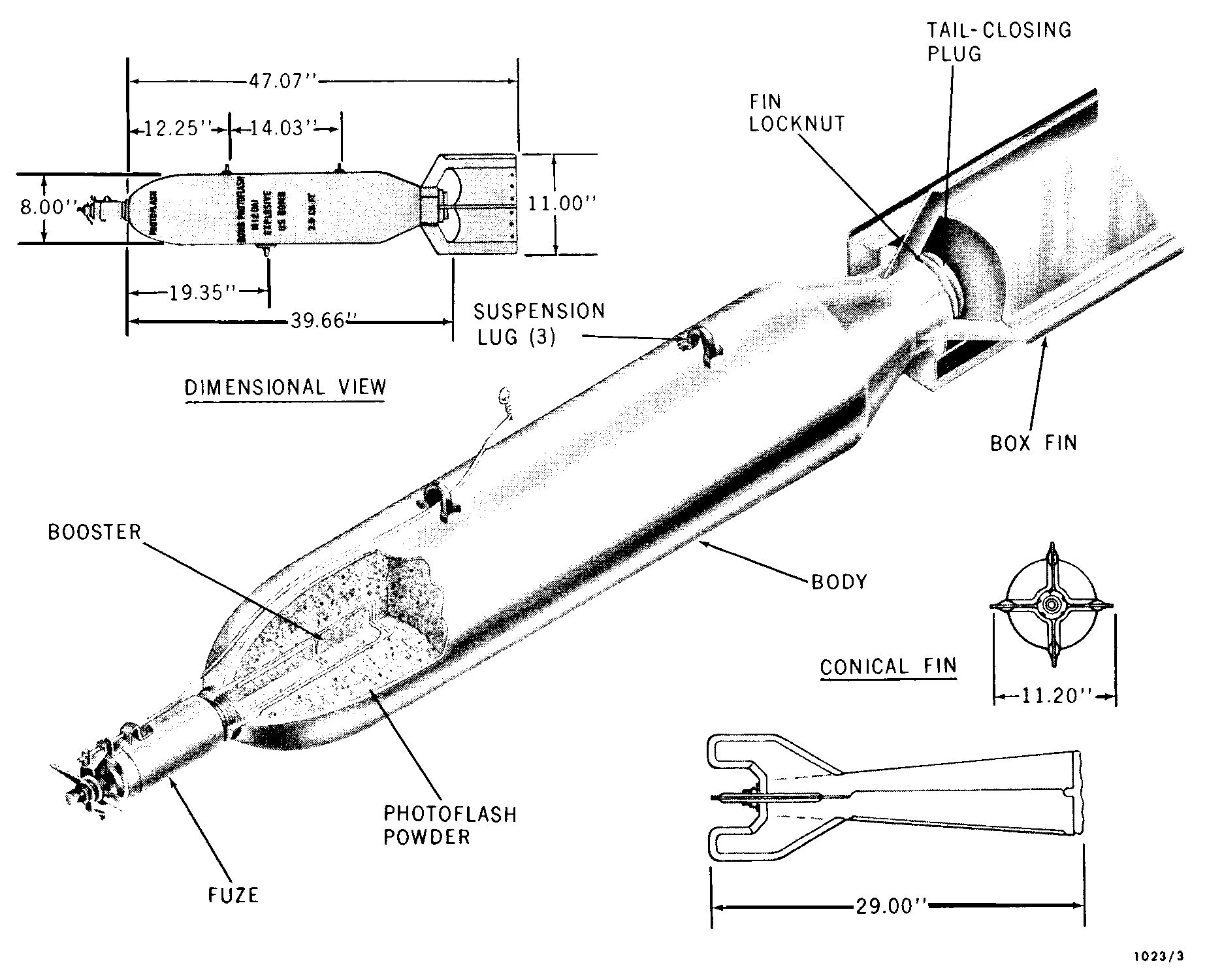

The 150 pound photoflash bombs, M120 and M120A1 are cylindrical in shape with a short ogival nose and a box-type tail fin. The bomb is filled with photoflash powder, contains a booster charge for bursting the bomb, and uses a mechanical time nose fuze. The M120 and M120A1 photoflash bombs are identical in external configuration. They differ in weight of filler.

Hazardous Components

M120 contains 69 lbs of photoflash powder. The M120A1, 82 lbs.

Possible fuzes:

Nose/Tail, MT, M907

Nose/Tail, MT, M907E1

Nose/Tail, MT, M907E2

See Also

Nothing else to see.

Source(s)

Collaborative ORDnance Data Repository (CORD)

TM 9-1325-200, Bombs and Bomb Components (1966)
